Alloy 20 Tube Fittings

Home > Alloy 20 Tube Fittings

Tilak Tubefittings is a reputable manufacturer and supplier of top-notch Alloy 20 Tube Fittings, located in Chennai, India. Renowned for their precision engineering and unwavering quality, Tilak Tubefittings caters to essential industries that demand exceptional corrosion resistance and reliability. These Alloy 20 tube fittings are crafted in line with international standards, guaranteeing outstanding performance even in harsh chemical environments. With state-of-the-art manufacturing facilities, rigorous quality control, and a focus on customer satisfaction, Tilak Tubefittings provides durable, leak-proof, and precisely dimensioned fittings. They are perfect for applications involving acids and challenging process conditions, ensuring a long service life and reliable operation.

Alloy 20 Buttweld Fittings Manufacturer in Chennai, Alloy 20 Buttweld Elbow Exporter in Chennai, Alloy 20 Seamless Butt Weld Fittings Exporter Supplier in Chennai, Alloy 20 Equal Cross Supplier in India, Alloy 20 Long Radius Bend In Chennai, Alloy 20 Tube Fittings In India, Alloy 20 Reducers Price List in India, Alloy Tube Fittings Manufacturer in Chennai, Alloy 20 Welded Tube Fittings Exporter in Chennai, India.

Alloy 20 tube fittings are mainly composed of nickel (30-38%), chromium (19-21%), and steel, with molybdenum (3-4%) and copper (3-4%) for enhanced corrosion resistance These fittings exhibit excellent mechanical properties, Advantages of Alloy 20 tube fittings, with a tensile strength of about 750 MPa and a yield strength of about 310 MPa, together with exceptional resistance to sulfuric acid and other corrosive media, making it ideal for chemistry and medical applications.

Alloy 20 Tube Fittings Specifications

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2
Types	Seamless / ERW / Welded / Fabricated
Connection	Welding
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process	Push, Press, Forge, Cast, etc.
Specialized manufacturer of	90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc

Alloy 20 Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Ni	Cr	Fe	Mo	P
Alloy 20	0.07 max	2.00 max	1.00 max	0.035 max	3 – 4	32 – 38	19 – 21	29.85 min	2.00 – 3.00	0.045 max

Alloy 20 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.1 g/cm3	1443 °C (2430 °F)	Psi -80,000, MPa -551	Psi – 35,000, MPa – 241	30 %

Top Alloy 20 Tube Fittings Manufacturing Company in Chennai

Alloy 20 is a nickel-iron-chromium alloy enriched with copper and molybdenum, specifically engineered for remarkable resistance to sulfuric acid and chlorides. Its typical composition features nickel, chromium, iron, copper, and molybdenum, which work together to offer robust protection against pitting and stress corrosion cracking. In terms of mechanical properties, Alloy 20 tube fittings boast impressive tensile and yield strength, along with high ductility and toughness across a broad temperature range. This alloy maintains its structural integrity under pressure, making it ideal for demanding industrial and chemical processing settings.

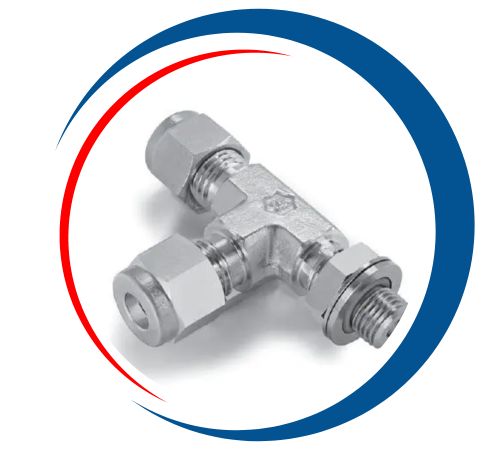

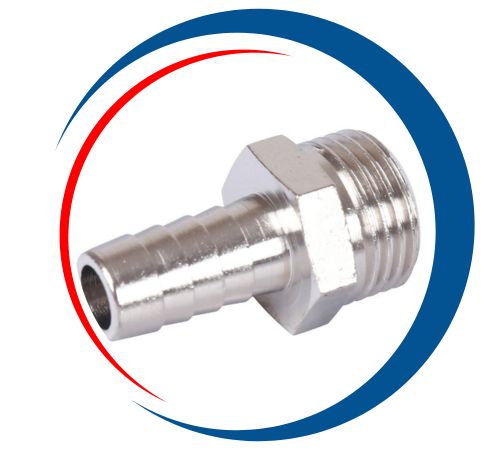

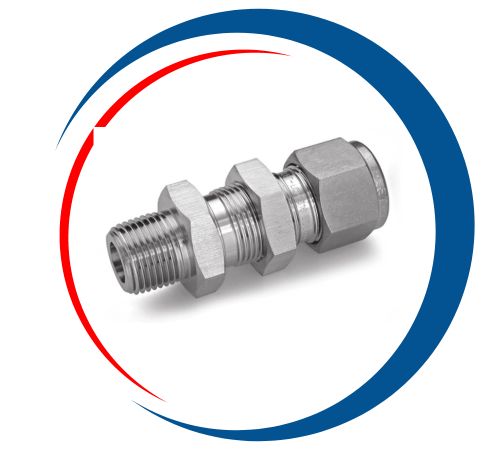

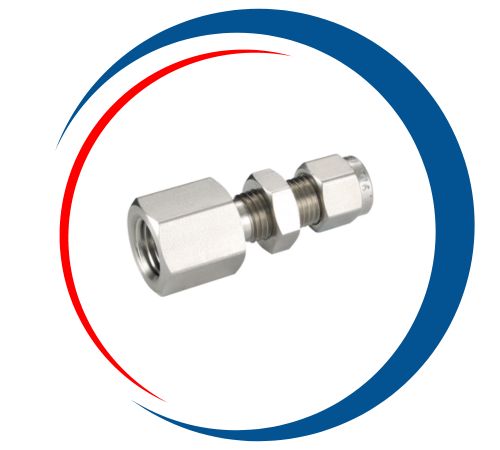

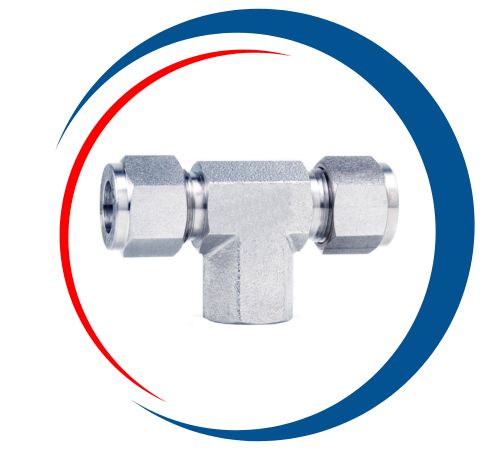

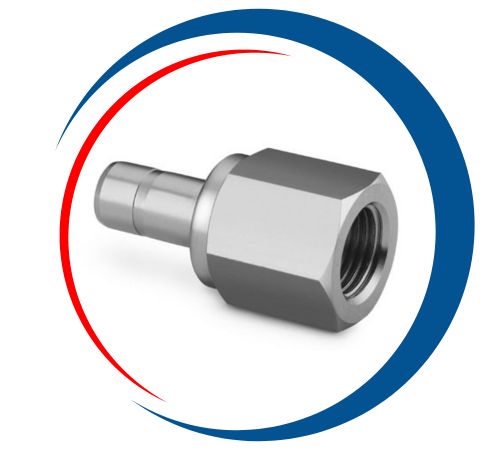

Types of Alloy 20 Tube Fittings

Alloy 20 Tube Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	AFNOR	EN
Alloy 20	2.4660	N08020	Z2NCUD31-20AZ	NiCr20CuMo

Alloy 20 Reducer Exporter in India, Alloy 20 End Pipe Cap Manufacturer, Alloy 20 Instrumentation Tube Fittings Price in Chennai, Alloy 20 Swage Nipple Supplier in Chennai, Alloy 20 Eccentric Reducer Manufacturer in Chennai, Alloy 20 Single Ferrule Tube Fittings Price in India, Alloy 20 Tee Supplier and Manufacturer in India, Alloy 20 Male Elbow In Chennai, India.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Alloy 20 Tube Fittings in Chennai, India

At Tilak Tube Fittings, we take pride in being the largest supplier, manufacturer, and exporter of Alloy 20 Tube Fittings in Chennai, India. Our innovative solutions are designed to address all your piping requirements. With advanced production facilities strategically situated in the India, we maintain an extensive inventory of over 16,000 tons of high-quality materials, guaranteeing that we have the stock readily available to fulfill your needs efficiently.

Alloy 20 Tube Fittings Uses

Alloy 20 Tube Fittings find extensive use in industries where corrosion resistance and process reliability are paramount. They are commonly employed in chemical processing plants, petrochemical facilities, pharmaceutical manufacturing, and systems handling acids. These fittings are particularly well-suited for sulfuric acid services, heat exchangers, reactors, and piping systems that come into contact with aggressive chemicals. Moreover, Alloy 20 fittings are also utilized in food processing, pulp and paper production, and offshore installations due to their impressive resistance to corrosion.
